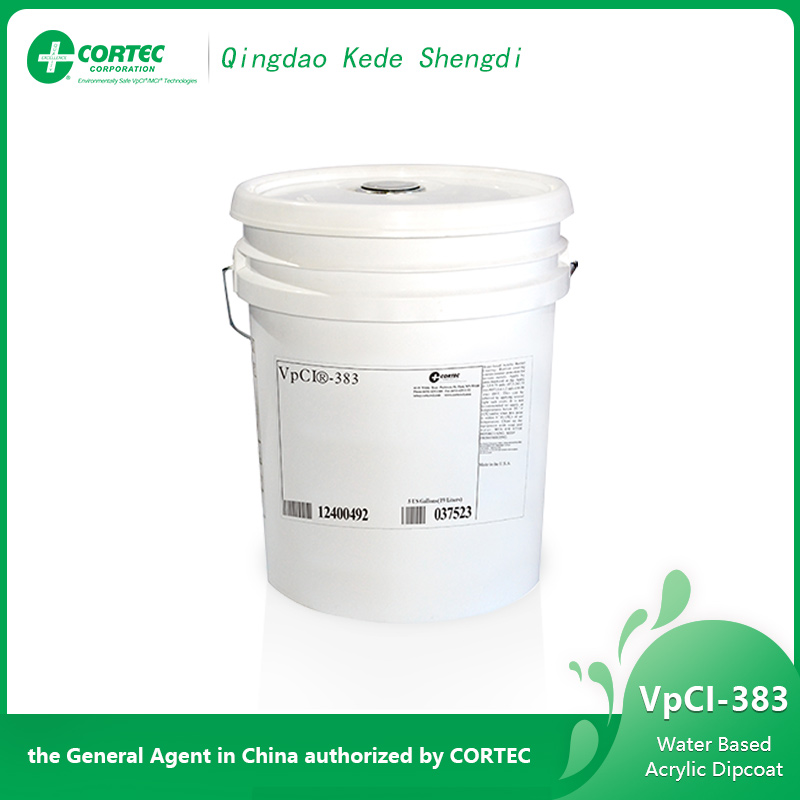

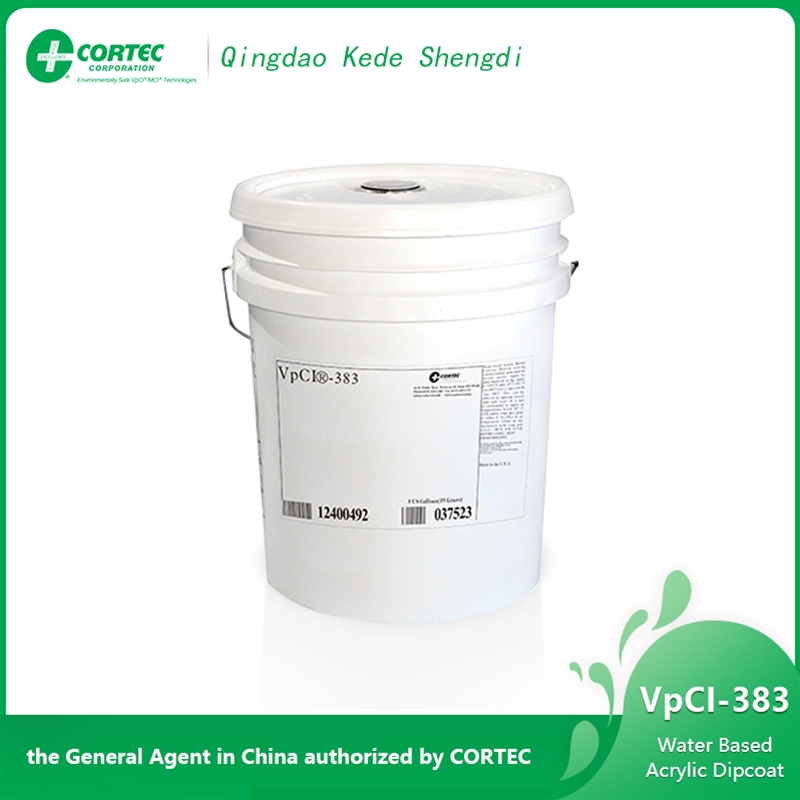

VpCI-383 Water Based Acrylic Dipcoat
市 場 價(jià)：￥0
優(yōu) 惠 價(jià)：￥1
庫 存：0
PRODUCT DESCRIPTION：
VpCI®-383 is a fast drying, water-based acrylic one coat system (topcoat) that can be applied DTM (Direct to Metal) and provides protection in harsh, outdoor, unsheltered applications.
E-Mail：zzgvci@163.com
商品詳細(xì)
VpCI®- 383 is designed for use in diptank applications. The complex mixture of non-toxic, organic inhibitors offers protection that competes with most paints and zinc-rich primers. Provides multi-metal protection. Excellent UV resistance. Can be matched to most custom colors.
PACKAGING & STORAGE
VpCI®-383 is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) metal drums, liquid totes, and bulk. Keep product from freezing. Product shelf life is 1 year.
CHARACTERISTICS/TECHNICAL DATA
|
Volume Solids |
12% |
|
Gloss (ASTM D532) |
80+ |
|
VOCs (ASTM D3960) |
0.6 lbs/gal (72 g/l) |
|
Viscosity |
18-28 sec+ Zahn#2 |
|
Pencil Hardness (ASTM D3363) |
HB-H |
|
Spreading Rate |
197 sq.ft/gal @ 1.0 mils DFT (4.83 sq.m/l @ 25 μm) |
|
Weight per Gallon |
8.43 lbs/gal (1.01 kg/l) |
|
Flash Point |
>200°F (93°C) |
|
Recommended DFT |
.4-1.2 mils (10-30 μm) |
|
Recommended WFT |
3.5-9.75 mils (87.5-243.75 μm) |
|
Dry to Touch |
30 min |
|
Dry to Handle |
1 hr |
|
Recoat Time |
Dry to touch - 72 hrs, sand thereafter |
|
Force Dry |
15-20 min @ 150°F (65°C) |
|
Full Cure |
3-7 days |
|
Salt Spray (ASTM B117) |
168 hrs |
|
Humidity (ASTM D1748) |
168 hrs |
|
Adhesion (ASTM D3359) |
5B |
|
Flexibility (ASTM D522) |
1/2" mandrel (1.27cm) |
All tests performed after a 7 day cure at ambient temperature
APPLICATION
Surface Preparation
Substrate should be free of grease, oil, dirt, fingerprints, drawing compounds, rust inhibitors, or any other surface contam- ination that could affect adhesion. For production line applications, use VpCI®-440 or similar phosphatizing pre-treatment. For structural steel applications, Cortec® recommends a minimum of a NACE #3/ SSPC-SP6 commercial blast clean. Consult Cortec® and/or test system adhesion prior to full scale application.
A wash primer such as VpCI®-373 green applied at 0.5-1.0 mils (12.5-25 microns) is recommended before applying the VpCI®-383 to aluminum, galvanized or plated substrates.
Note: Make sure dew point is more than 5°F (2°C) less than air temperature for application. Power agitate to a uniform consistency using a “squirrel cage” type mixer, hand-held drill mixer, or other equivalent method. VpCI®-383 can be applied by spray, roll, brush, or dip.
Typical Equipment Setups
HVLP / Conventional Spray
•Tip .009”-.021” *dependent upon pressures and viscosity
•Air Pressure 45-55 psi
•Fluid Pressure 10 psi
•Fluid hose should be 3/8” (0.95 cm) I.D. with a maximum length of 50 feet (15.2 m). Pot should always have dual regula- tion and be kept at same elevation as spray gun.
Air Assisted Airless / Airless
•Tip .015”-.035” *dependent upon pressures and viscosity
•Pressure 1800-2500 psi
•Hose should be 3/8” (0.95 cm) I.D. minimum, but a ¼”
•(0.64 cm) I.D. whip end section may be used for ease of application. A maximum length of 100 feet (30.5 m) is suggested.
Cleanup
Clean tools/equipment immediately after use with water when paint is still wet. When dry, use Butyl Cellusolve or MEK. Follow mfg’s safety recommendations when using any solvent.
